PrecisionAluminum Systemsfor Commercial Excellence
YKK AP expertise with CNC fabrication for storefront construction
Custom CNC Fabrication
Advanced manufacturing capabilities with precision CNC machining specifically designed for YKK AP systems to fit any entry way. We don't just supply aluminum framing — we fabricate it to perfection, no matter the project.
Why CNC Matters for YKK Systems
Precise Alignment
Maintains structural integrity and thermal performance with exact tolerances
Installation Efficiency
Minimizes field modification requirements and reduces installation time
Speed & Accuracy
Improves installation speed with precise preparation and error reduction
Precision CNC Machining
Advanced technology specifically calibrated for YKK AP systems to fit any entry way & project
Custom Aluminum Framing
Tailored components for efficient job site installation
Project-Ready Delivery
Pre-fabricated systems reduce field labor and installation time
Equipment Highlights
- • Rhino-Fab Machine: Custom doors to any hardware specification
- • Emmegi CNC Machine: Highly accurate aluminum frame fabrication
Custom Fabrication
Pre-Installed Hardware
Faster Lead Times
Consistent Quality
Stocked Storefront Systems
Engineered for precision, built for performance. Our complete range of YKK AP systems delivers the reliability and aesthetics your commercial projects demand.
Note: All systems shown are currently in stock. Additional storefront systems available upon request.
• 1/4" to 3/8" monolithic glass
Key Features
- Center-set, flush-glazed framing system
- Screw-spline or shear-block assembly
- Cost-effective solution for interior applications
Applications
- Standard interior storefront applications
- Applications where thermal performance is not required
- Used for interior and/or exterior applications
• Up to 1" thick insulating glass
• Various glazing options
Key Features
- Rigid, center-set 'non-thermal' storefront system
- Broader structural standard 2" face profile
- Used for interior and/or exterior applications
- Screw-spline or shear-block assembly
Applications
- Applications requiring structural flexibility
- Projects needing durability without thermal break
- Commercial installations with varied infill materials
- Standard storefront applications
• Various glazing options
Key Features
- Thermally broken aluminum construction
- Standard 2" sightlines
- Reduces energy costs
Applications
- Designed for single story applications
- Designed to meet today's stringent energy codes
AUTHORIZED YKK AP DEALER
Factory-Direct Partnership
As an Authorized YKK AP Dealer, Elev8 provides direct access to industry-leading commercial aluminum storefront, curtain wall, and entrance systems. This partnership allows us to source stocked YKK AP materials and components efficiently, helping reduce procurement delays while ensuring systems meet exact project and performance requirements.
Combined with our in-house aluminum fabrication capabilities, Elev8 can cut, prep, assemble, and job-package YKK AP systems under one roof. This integrated approach gives our customers shorter industry lead times, improved quality control, and job-ready materials that support faster, more efficient installation in the field.
YKK AP Product Brochures
Explore our comprehensive YKK AP aluminum systems documentation. Technical specifications, installation guides, and product catalogs to support your project needs.
Door Handing Specifications
Proper door handing is critical for correct installation and operation. All measurements must be taken from the exterior view.
(LHR) Left Hand Reverse
Right Hand Outswing
Hinges on right, opens away from viewer
(RHR) Right Hand Reverse
Left Hand Outswing
Hinges on left, opens away from viewer
Pair Outswing
Double doors opening away from viewer
Left Hand Inswing
Hinges on left, opens toward viewer
Right Hand Inswing
Hinges on right, opens toward viewer

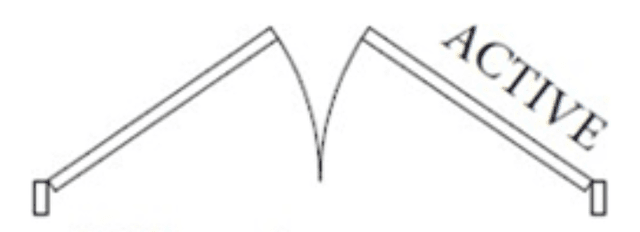

Pair Inswing
Double doors opening toward viewer
Premium Aluminum Finishes
Choose from our comprehensive range of anodized and paint finishes to match your project's aesthetic and performance requirements.
Durable, corrosion-resistant finishes that enhance the natural properties of aluminum.
Black Anodized
Champagne Anodized
Clear Anodized
Dark Bronze Anodized
Medium Bronze Anodized
White Anodized
Aluminum Systems FAQ
Common questions about YKK AP aluminum storefront systems and services
What YKK AP aluminum systems does Elev8 distribute?
Elev8 is an authorized YKK AP dealer, offering a full range of YKK AP aluminum storefront, curtain wall, and door systems, including the YES 45FS, YES 45FI, and YES 45TU. Additional YKK AP systems may be available upon request.
What is the difference between thermal and non-thermal aluminum systems?
Non-thermal systems are constructed from a single, continuous piece of aluminum with no thermal break. Thermal systems include a polyamide thermal break that separates the interior and exterior aluminum profiles, reducing heat transfer between inside and outside.
What aluminum finishes are available?
Our stocked anodized finishes include black, dark bronze, clear, and white. Additional anodized finishes, such as champagne and medium bronze, are available upon request.
Does Elev8 offer CNC fabrication?
Yes. In order to meet project specific hardware and fabrication requirements, Elev8 uses 3 fully automated CNC machines to prep for the necessary hardware and accessories. Our CNC capabilities, along with our automated saw, help improve accuracy, reduce field labor, and support faster, more efficient installations.
What are typical lead times for YKK AP aluminum systems?
Lead times for YKK AP aluminum systems vary based on system type, finish, fabrication requirements, and overall project scope. Standard systems and stocked finishes are more readily available, while custom configurations or fabricated orders may require additional time. For projects involving specific materials or customizations, we recommend reaching out as early as possible.
Can Elev8 help with aluminum system engineering and shop drawings?
Elev8 can assist with system layout support and shop drawings based on approved project specifications. Final field measurements are typically provided by the customer/contractor to ensure accuracy and jobsite coordination. Elev8 can provide engineered, job-specific shop drawings for an additional fee.
Project Planning & Design Support
Comprehensive support from system selection to installation. Our aluminum specialists work with your team to ensure project success.
System Selection
Guidance on appropriate YKK systems for specific applications
Performance Requirements
Assistance with structural and thermal specifications
Code Compliance
Support for building code and energy code requirements
Material Takeoffs
Accurate material calculations and quantity estimates
Shop Drawings
Detailed fabrication and installation drawings
Installation Support
Highly trained staff can assist with installation support
Cost Optimization
Strategies to reduce costs while maintaining quality
Alternative Systems
Recommendations for budget considerations
Lifecycle Analysis
Long-term cost and maintenance considerations
Cross Division Products
- • Glass Integration: Coordinated glazing specifications with Glass Division
- • Hardware Integration: Door hardware coordination with DFH Division
- • Single-Source Advantage: Complete project responsibility and coordination
System Compatibility
- • Compatible with Elev8's complete glass product range
- • Pre-configured for standard commercial hardware
- • Seamless integration across all product divisions
Authorized YKK AP Dealer
Elev8 is one of the largest companies outside of YKK AP America to house YKK AP Architectural Aluminum in-house with ongoing product training and industry best practices.
Fabrication Quality
- • Rigorous quality control procedures
- • In-house inspection processes
- • Workmanship guarantees
- • Quick defect resolution
Ready to Start Your Aluminum Project?
Get expert consultation, custom fabrication, and project-ready delivery for your commercial aluminum systems.
Get a Quote
Project-specific pricing with detailed specifications and delivery timeline.
Request QuoteDownload Resources
Access YKK catalogs, technical specifications, and installation guides.
View ResourcesDelivery Coverage Area
Primary delivery zone with Elev8 fleet from Massachusetts to Northern Virginia, west to Harrisburg/Mechanicsburg, PA. Extended coverage available via 3rd party carriers.
Primary Delivery Zone
- • North: Massachusetts and Rhode Island
- • South: Northern Virginia
- • West: Harrisburg/Mechanicsburg, PA
Extended Coverage
- • 3rd party carriers available
- • Special handling for long lengths
- • Job site delivery options
Complete Storefront Solutions
Coordinate your aluminum systems with our Glass and DFH divisions for complete project responsibility and seamless integration.
