Compare curtain wall and storefront systems, thermal framing and assembly methods, with a practical checklist for commercial aluminum product quotes.
A curtain wall is an exterior enclosure attached to a building's structure. It carries its own weight and transfers wind loads through its connections, while the main structure supports the building's floors and roof. The enclosure must also address weather exposure and building movement. See YKK AP's curtain-wall guide.
Storefront framing is commonly used around ground-level commercial entrances and glazed openings. Curtain wall can span several floors and serve more demanding facade conditions. Both can present a similar grid of metal and glass, so appearance alone cannot tell you whether one system can replace the other.
For a useful comparison, start with the opening dimensions, support conditions and required performance, then identify the exact product being proposed.
A storefront system typically combines framing and glazing around a commercial frontage, often with entrance doors. Ground-floor retail and office entrances are familiar examples, but the intended application must still fit the selected product's capabilities. See YKK AP's storefront product guide.
“Aluminum and glass” is too broad to serve as a purchasing specification. Keep the manufacturer, system model and configuration visible on the marked elevation. Elev8's commercial aluminum systems overview is a starting point for defining the materials you need quoted.
Storefront generally serves lower, often single-story openings. Curtain wall can accommodate taller facade areas and more demanding exposure. Standard storefront products generally offer lower air- and water-resistance performance than curtain-wall products, but those are category-level tendencies. Compare the proposed systems' actual documentation. See Technical Glass Products' system comparison.
Avoid turning a familiar rule of thumb into a universal height cutoff. Opening span, design pressure, support conditions and the manufacturer's limits matter. A low opening with demanding exposure may require a different solution from a sheltered entrance of the same height.
Curtain-wall framing and connections must account for loads and movement, including thermal expansion and movement of the building. Mullion depth, opening size and design pressure affect system selection. See YKK AP's curtain-wall guidance.
Both systems need appropriate support; “non-load-bearing” does not mean that a facade carries no loads. For an estimate, provide the mullion layout and available support details. If an attachment condition is unresolved, flag it in the quote request so competing suppliers do not price different assumptions.
Ask for evidence that corresponds to the exact proposed system and configuration. A test result from a different glass build-up or framing option may not answer the project's requirement.
A practical comparison record has three entries for each criterion: the specified requirement, the proposed product's supporting evidence and any unresolved difference. Include structural, air, water and thermal criteria from the project documents. Ask the design team to review gaps or substitutions rather than treating a brochure's “high performance” description as a measured result.
Insulating glass and a thermal break in the frame are separate features. Glass construction describes the glazing; a thermal break interrupts the heat-conducting path through the framing. Both need to be identified in the proposed assembly.
Two YKK AP storefront products make the distinction concrete:
A request for “YKK storefront with insulated glass” leaves the framing choice unresolved. Identify the exact model and variant, then review its documented performance against the project criteria. Neither product name by itself establishes suitability for every climate, opening or specification.
Elev8's YES 45 FI brochure and YES 45 TU brochure provide product references for the inquiry. The TU brochure concerns the center-set system; retain that distinction when requesting an alternate.
These terms describe how a curtain-wall package is assembled:
Unitized construction places substantial engineering, detailing and assembly work early in the project. TGP's curtain-wall construction overview explains the difference.
For procurement, define the supplied work as carefully as the framing product. A price for loose framing, a fabricated-component package and a panelized system covers different work. Confirm which package the supplier is quoting, along with the interface details and delivery requirements. Do not assume every supplier offers each assembly approach.
Attach a marked elevation and a current performance schedule. Include:
Use the aluminum resource library to gather the relevant product documents. If the inquiry also involves glass selection, our tempered-versus-laminated glass guide explains those material categories. Keep the project's actual glazing specification with the inquiry so general guidance is not mistaken for an approved substitution.
Review inclusions, exclusions and assumptions beside each proposal. Check whether the bids describe the same glass, framing, finish, supplied components and delivery scope. When a product changes, request the supporting performance information as well as the price difference.
Keep unresolved design questions in a separate list with the drawing revision they affect. This makes it easier to see whether a revised quote answers the question or simply carries the same assumption forward.
Elev8 Fabrication and Distribution supplies aluminum systems and fabrication services. Request an aluminum product quote with the drawings, specified system and performance requirements so our team can discuss the materials and fabrication scope.

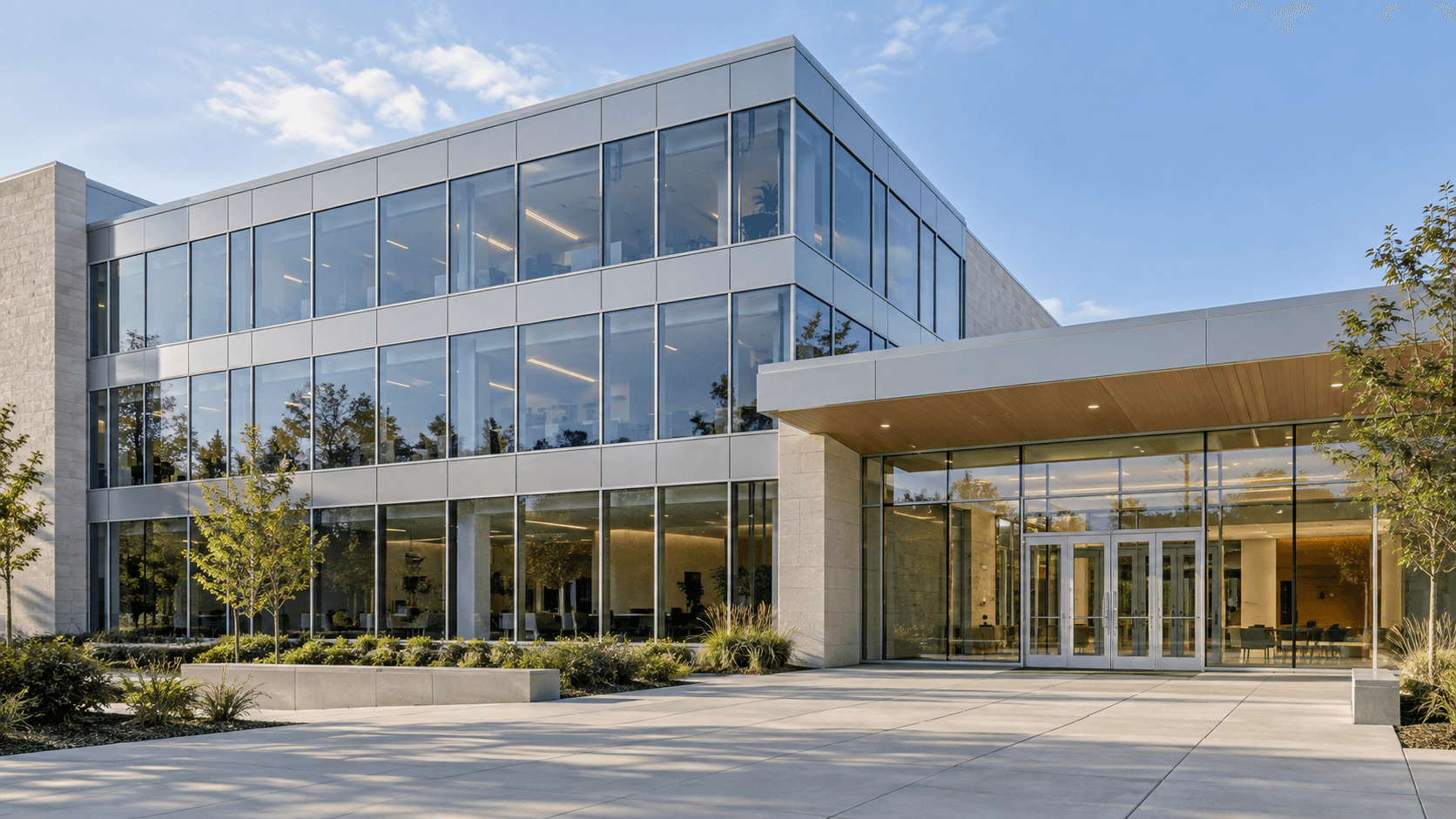

Header image: AI-generated architectural illustration of glazed facade and entrance concepts; not a completed Elev8 project.
Published on September 19, 2026
No. Curtain wall can serve low-rise and taller buildings. Height alone does not determine suitability; the opening's support, exposure, span and performance requirements also matter.
Storefront generally does not support the building's floors or roof. It still carries its own weight and must transfer loads acting on it through appropriate supports and connections.
No. YES 45 FI uses non-thermal framing for insulating glass. YES 45 TU center-set incorporates a thermal break. Identify the exact product and configuration when comparing performance.
Appearance does not establish equivalent performance. Review the proposed system, configuration, support details and documented results with the design team before accepting a substitution.
